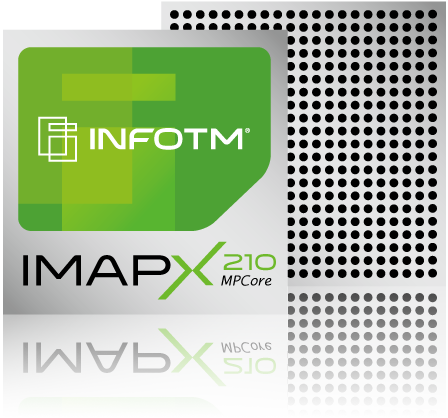

iMAPx210 - Application Processor

iMAPx210

It is the nation’s first processor which uses 3D GPU, and also the nation’s first processor whose basic frequency exceeds 1GHz. Single nucleus and single GPU configuration, integrated video encoding and decoding module and broad interfaces are one of

Return product

Specification parameter

CPU

Single Core ARM1136™ ，Upto 1GHz Single nucleus ARM1136™, the highest basic frequency 1GHz
GPU

VivanteGC600
video processing

FHD 1080p 30fps encode，supportH.264、MPEG4 video format 720p 30fpsencode，support H.264 and JPEG format
Video interface

Support RGB888 output Support ITU 601/656 input Support TS input interface
Audio interface

I2S interface
Memory / storage

Support 32bit DDR1/DDR2/LPDDR1 400MHz Support SLC/MLC NAND Flash Support NOR Flash Support CF/IDE
Ethernet

10/100 MAC
gps

GPS interface

Solution

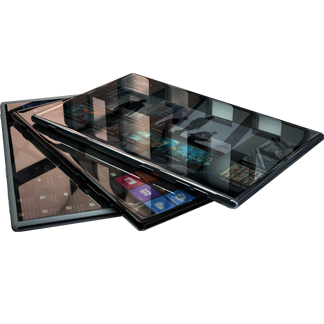

Telephone/ Tablet computer

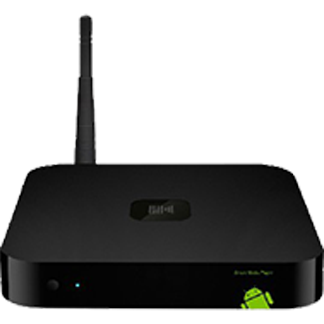

Set-top Box
