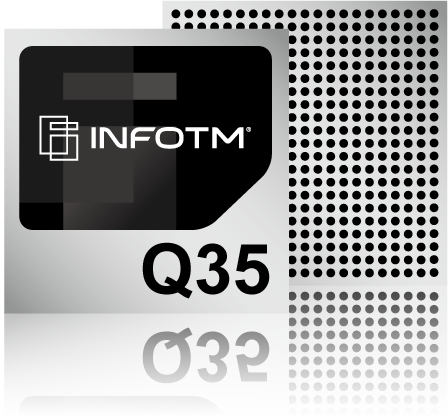

Q35 - Image Processor

Q35

● high integration and low power

● professional ISP image effects

● support H265 1080P@30fps

Specification parameter

CPU

32bit RISC CPU, upto 800MHz
GPU

Integrated ISP，8M sensor input Support WDR, 3D denoise、EIS、fisheye、face detection, etc.
video processing

1080p 60fps，support H.264和H.265 encode and decode
Audio interface

I2S/PCM interface
Memory / storage

Support 32bit DDR2/DDR3/LPDDR2 533MHz Support SPI NOR Flash
Ethernet

10/100 MAC
Camera interface

Suppot ITU 601/656 interface Support MIPI-CSI interface
Video output interface

Support RGB888/I80 display interface Support HDMI 1.4a video output
